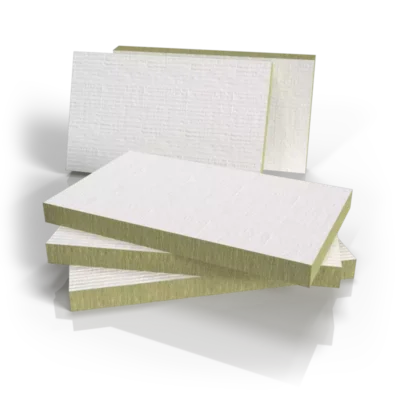

Mineral fibre board
The mineral fibre board is a pressure-resistant and water-repellent rock wool insulation board. It is heat and sound insulating, dimensionally stable with temperature changes, vibration damping, chemically neutral and open to diffusion. The board has a factory-applied pre-coating of the ablative fire protection coating PYRO-SAFE® FLAMMOTECT-A.
Field of Application
Pre-coated mineral fibre boards are used in fi re protection systems for cable, pipe and combined penetrations.
Applicability certificate
Tested and approved according to national and international standards as e.g.:
DIN, EN and BS, other standards on request
Product Features
The mineral fibre board MFP is a rockwool insulating board which is resistant to compression and water-repellent. The product is extremely heat insulating and sound absorbing, dimensional rugged in case of thermal
fluctuation, vibration reducing, chemically neutral and open to diffusions.
Handling
- Easy to cut with knife or saw
Technical Data
| Color | grey-green |
| Form | fibrous solid state |
| Melting point | ≥ 1,000 °C |
| Caloric conductibility | λD 0.040 W/mK (according to DIN EN 13162) |
| Steam diffusionresistence coefficient | µ 1 (according to DIN EN 12086) |
| Nominal bulk density | approx. 150 kg/m³ |
| Size | 1000 x 600 mm |
| Thickness | 50mm / 60 mm / 80 mm |
Coating
|
Pre-Coating |
PYRO-SAFE FLAMMOTECT-A |
|
Dry film thickness |
ca. 0.5 mm |
